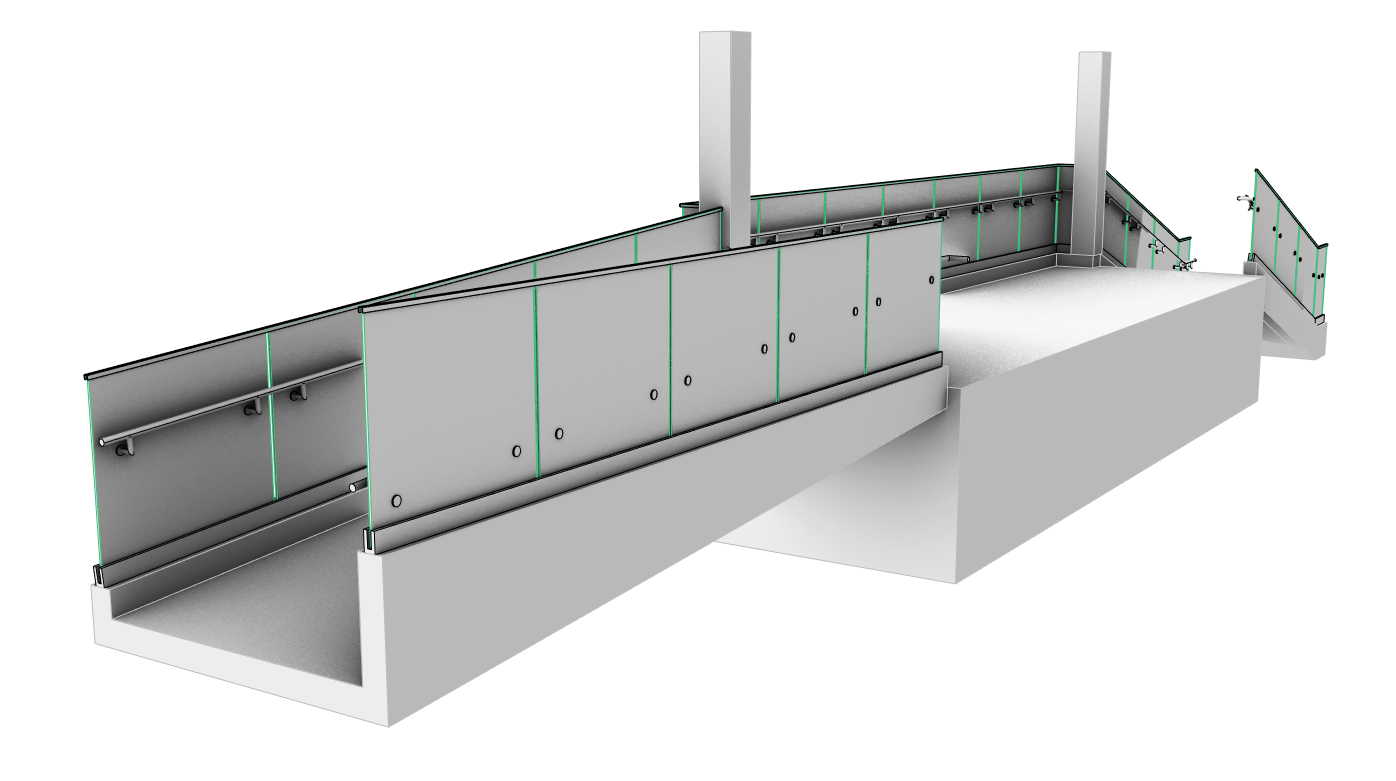

Ce projet concerne la conception d’un garde-corps en verre dans le cadre du projet de jardins de Cambie

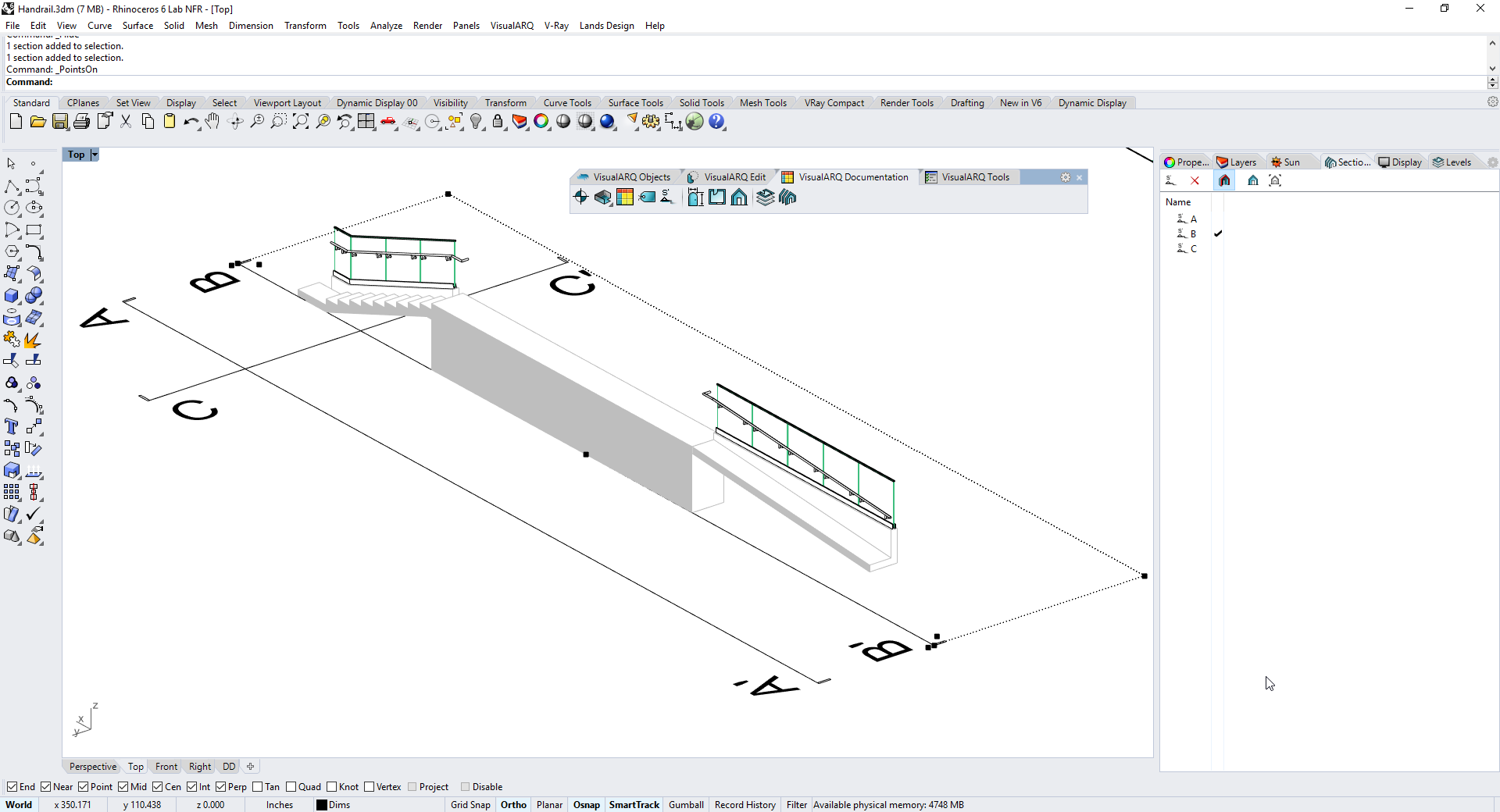

L’architecte Alan Gomez a utilisé Rhino et VisualARQ pour générer le modèle 3D et produire les plans 3D pour ce projet.

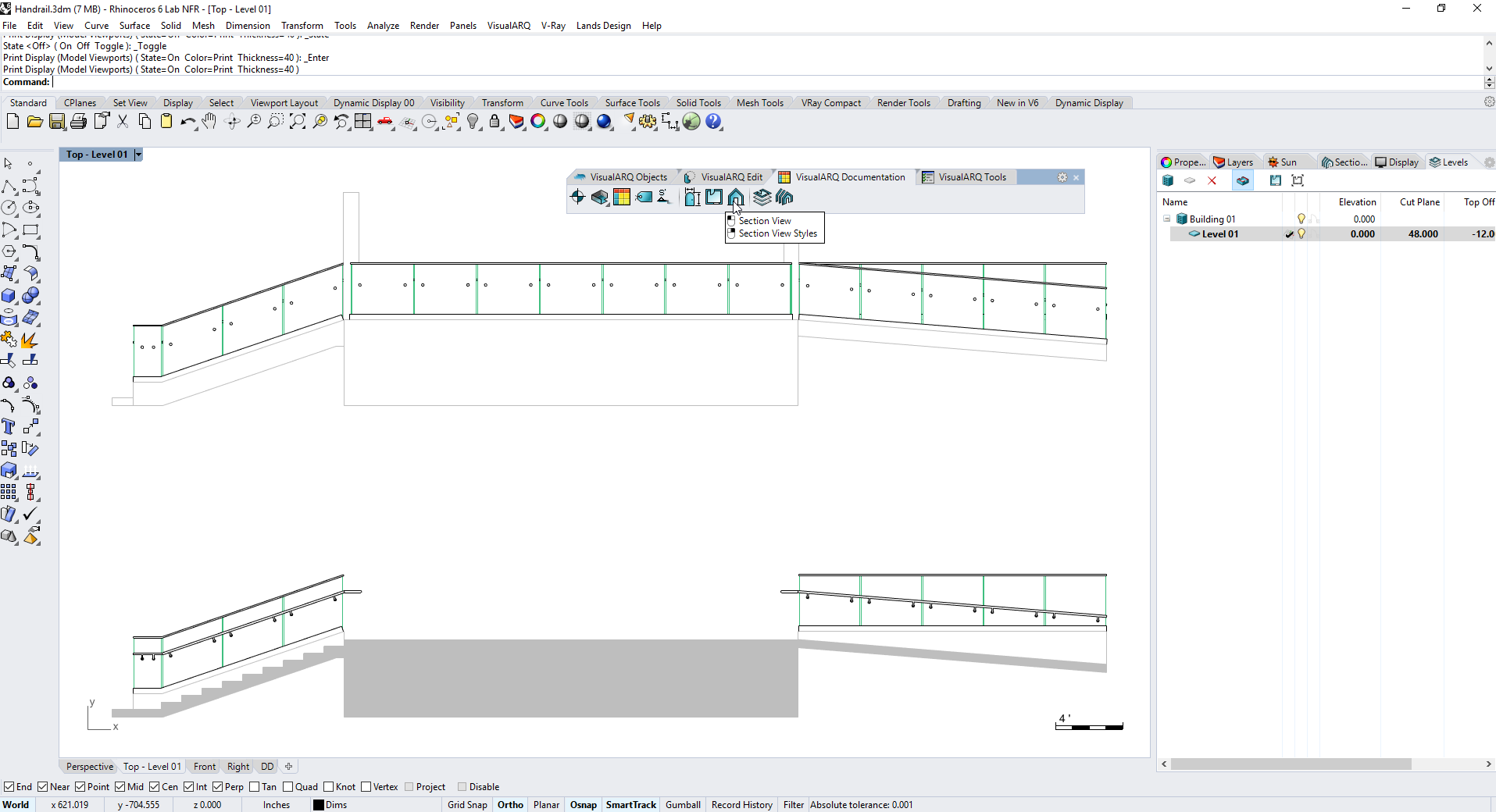

« En raison du type de concept à fabriquer, l’utilisation d’un outil capable de produire des dessins vectoriels 2D en temps réel était indispensable pour générer des sections détaillées pouvant être affichées dans les plans, aussi bien pour la révision que pour la fabrication.
Les outils de VisualARQ ont permis de faire le lien entre le modèle 3D et la production de dessins de construction 2D pour ce garde-corps en verre. »
Images fournies par Alan Gomez (info@alangomez.ca)
