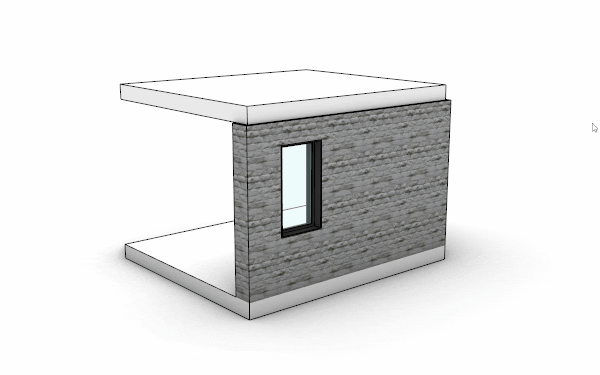

VisualARQ’s Wall Layer Offsets let you adjust the top and bottom height of each wall component independently. This makes it easier to create accurate connections with slabs, roofs, and other intersecting elements.
Offsets can be defined for individual walls or applied by style, allowing you to update multiple walls at once. The result is faster BIM modeling, cleaner 3D geometry, and more precise architectural details throughout the project.
Related Features
Editable joints & intersections
Wall intersections are solved in 3D and in 2D. Wall component wrappings are also fully customizable.

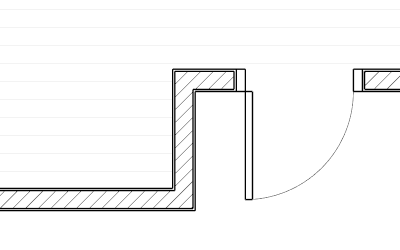

Wall Layer Thicknesses
